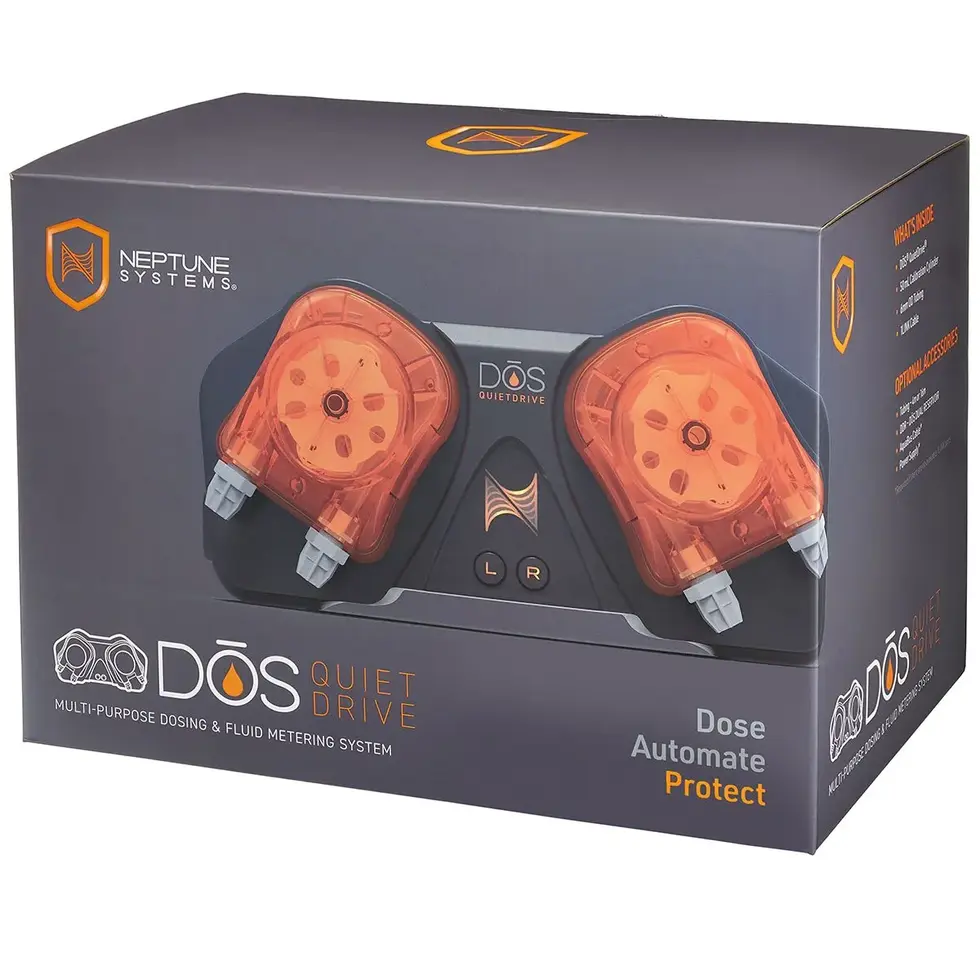

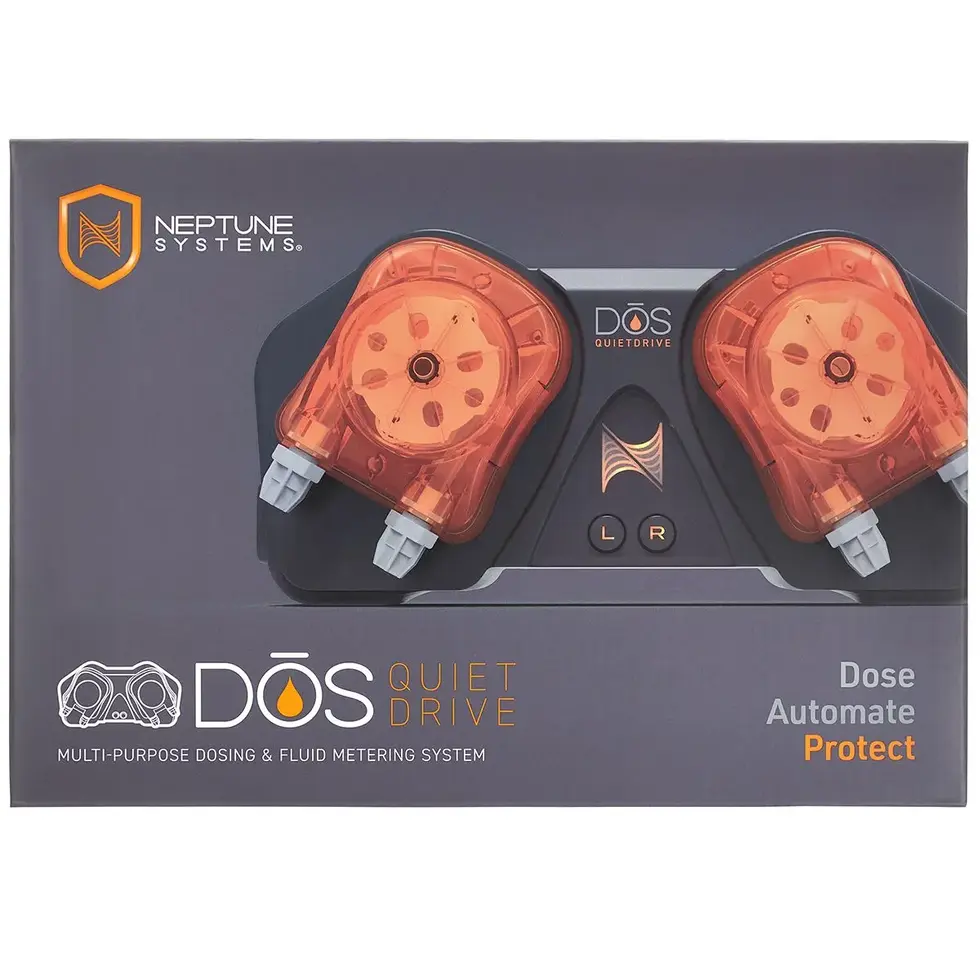

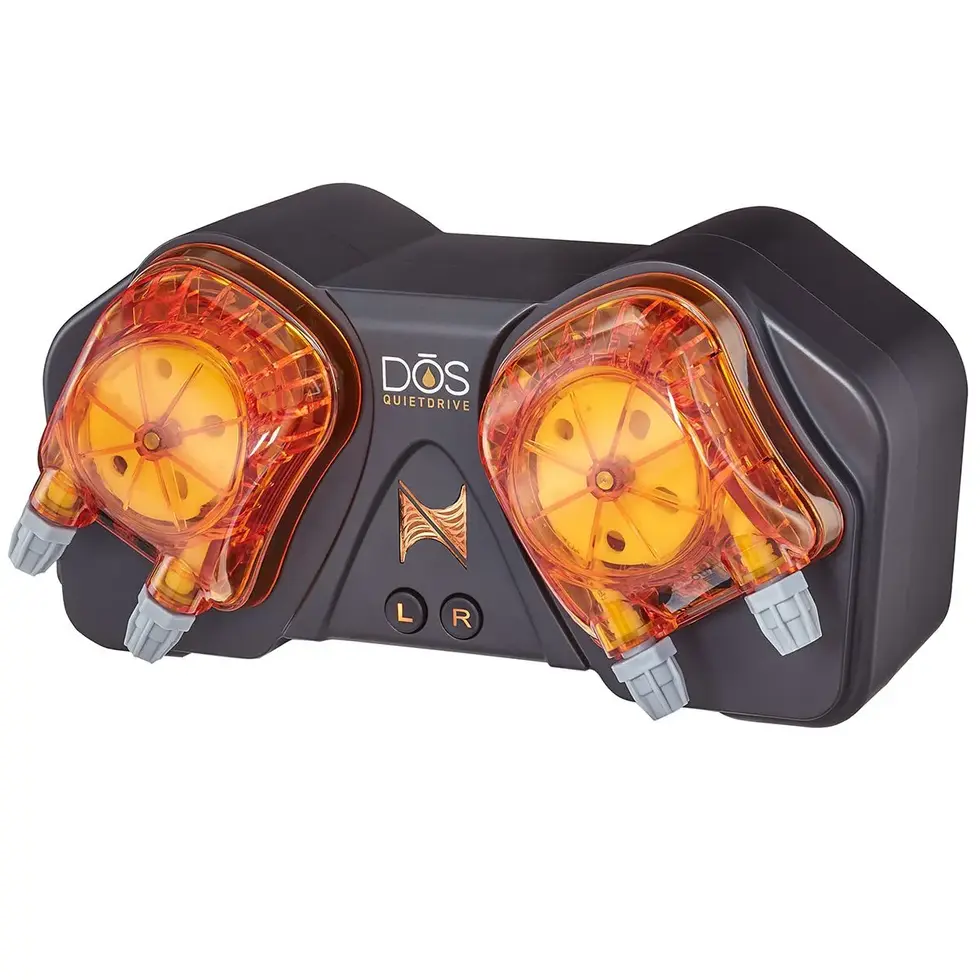

DOS QuietDrive Dosing Pump - Neptune Systems

What Can the DŌS QuietDrive Bthe restadditivee Used For?

Automation at it's Peak : Connect your Trident ACM and set up DOS to dose your additive based on test results from Trident, and let Apex handle the fine adjustments multiple times a day.  Stability that Your Reef Deserves!

Two-Part Dosing: The most common use for the DŌS is dosing calcium and alkalinity to your system. Using a dosing pump to add these elements means greater stability of important water parameters and less daily maintenance. Simply run the DŌS Additive Dosing task in Apex Fusion and enter the amount of liquid you'd like to dose and when you'd like for it to be dosed. The DŌS then sets up all the dosing intervals within that time period.

Automatic Water Changes: Water changes with the DŌS QuietDrive have never been easier.  All you do is run tubing to your empty vessel or drain and to your fresh stock of saltwater. Then, in Apex Fusion, select and run the DŌS Automatic Water Change task and you'll be up and running in a matter of minutes. It will perform an automatic water change for you based on the schedule you've set up. It's possible to change up to 30 gallons per day, or 12 gallons per day in the "Quiet Zone."

Micro Dosing: If you need to dose tiny amounts liquid (like vodka dosing or for Zeovit systems), the DŌS is the perfect solution due to its precision-controlled stepper motor. This ability to control pump movement in such a refined manner means that you can dose as little as 0.1ml at a time.
Continuous Duty Operation: At speeds up to 25 ml/min or 1500 mL/hr , the DŌS QD can run continuously, allowing the pump heads to run more quietly and offering more flexibility for additive dosing such as Calcium reactor effulent and automatic water changes.


Quiet Operation: The DŌS QD incorporates EcoTech QuietDrive technology to significantly reduce noise.

• Up to 400% reduction in noise at high speeds (60/125/250 ml/min)
• Up to 200% reduction in noise at slow speeds (7/12/25 ml/min)

Specifications

Requires: A2 or A3 Series Apex Controller

Dimensions (Approx.): 9.5" x 5" x 5"

Max. Lift Height: 24 Feet

Max. Suction Height: 24 Feet

Flow Rate: Variable (0.1ml - 250ml/min)

Power: 24VDC

What's Included?

DŌS QuietDrive Dosing Pump

1LINK Cable

4 Meters of 6mm Tubing

50ml Graduated Cylinder for Calibration
